Simple Panelization

Rectangular Panelization

You can panelize a surface with rectangular surfaces with simple for loop like the following.

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();

for( ISurface surf : surfs ){

  int unum = 8, vnum = 8;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      IVec pt11 = surf.pt( i*uinc, j*vinc );
      IVec pt21 = surf.pt( (i+1)*uinc, j*vinc );
      IVec pt12 = surf.pt( i*uinc, (j+1)*vinc );
      IVec pt22 = surf.pt( (i+1)*uinc, (j+1)*vinc );
      new ISurface(pt11, pt21, pt22, pt12).clr(i*uinc,j*vinc,0);
    }
  }
  surf.del();
}

Triangulation

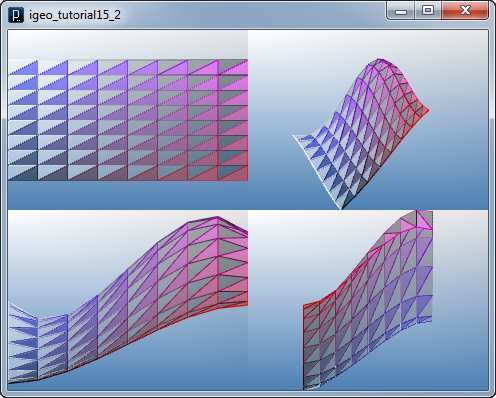

The simplest way to triangulate a surface is to put two triangles at the rectangular area dividing it at the diagonal line.

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();

for( ISurface surf : surfs ){

  int unum = 8, vnum = 8;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      IVec pt11 = surf.pt( i*uinc, j*vinc );
      IVec pt21 = surf.pt( (i+1)*uinc, j*vinc );
      IVec pt12 = surf.pt( i*uinc, (j+1)*vinc );
      IVec pt22 = surf.pt( (i+1)*uinc, (j+1)*vinc );
      new ISurface(pt11, pt21, pt22).clr(i*uinc,0,j*vinc);
      new ISurface(pt22, pt12, pt11).clr(1-i*uinc);
    }
  }
  surf.del();
}

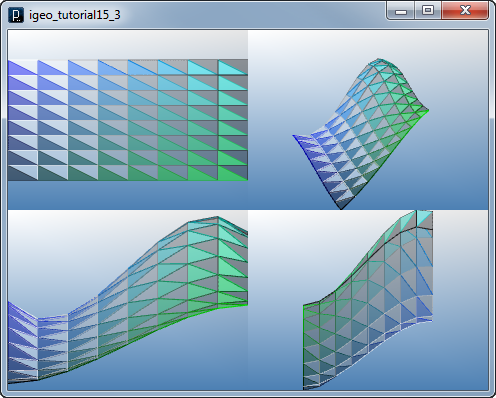

You can alternate the diagonal line by changing the sequence of points to create triangular surfaces.

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();

for( ISurface surf : surfs ){

  int unum = 8, vnum = 8;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      IVec pt11 = surf.pt( i*uinc, j*vinc );
      IVec pt21 = surf.pt( (i+1)*uinc, j*vinc );
      IVec pt12 = surf.pt( i*uinc, (j+1)*vinc );
      IVec pt22 = surf.pt( (i+1)*uinc, (j+1)*vinc );
      new ISurface(pt11, pt21, pt12).clr(0,i*uinc,j*vinc);
      new ISurface(pt12, pt21, pt22).clr(1-i*uinc);
    }
  }
  surf.del();
}

Diagrid Triangulation

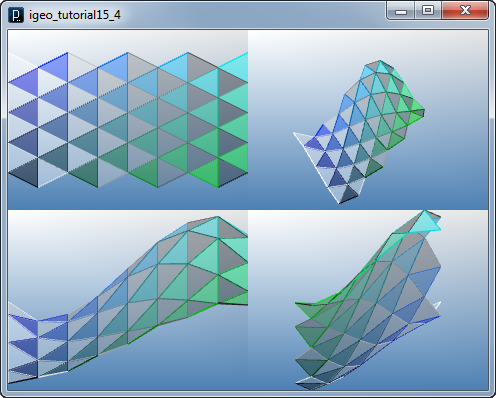

Another way to triangulate a surface is to apply the diagrid logic using the if condition if( (i+j)%2 == 0 ).

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();

for( ISurface surf : surfs ){

  int unum = 8, vnum = 8;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      if( (i+j)%2 == 0 ){
        IVec pt1 = surf.pt( i*uinc, j*vinc );
        IVec pt2 = surf.pt( (i+1)*uinc, (j-1)*vinc );
        IVec pt3 = surf.pt( (i+1)*uinc, (j+1)*vinc );
        new ISurface(pt1, pt2, pt3).clr(0,i*uinc,j*vinc);
      }
      else{
        IVec pt1 = surf.pt( (i+1)*uinc, j*vinc );
        IVec pt2 = surf.pt( i*uinc, (j+1)*vinc );
        IVec pt3 = surf.pt( i*uinc, (j-1)*vinc );
        new ISurface(pt1, pt2, pt3).clr(1-i*uinc);
      }
    }
  }
  surf.del();
}

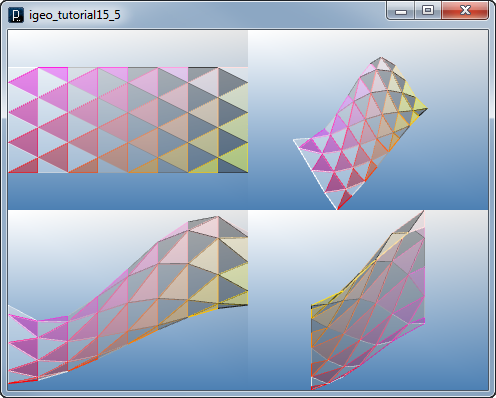

To have clear edge and corner condition to fill the original rectangular area of the input surface, you use if conditions to create filling geometries at the corners and the edges.

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();
for( ISurface surf : surfs ){

  int unum = 8, vnum = 8;
  double uinc = 1.0/unum, vinc = 1.0/vnum;
  IVec pt1, pt2, pt3;
  for(int i=0; i < unum; i++){
    for(int j=0; j < vnum; j++){
      if( (i+j)%2 == 0 ){
        pt1 = surf.pt( i*uinc, j*vinc );
        if( j > 0 ){
          pt2 = surf.pt( (i+1)*uinc, (j-1)*vinc );
        }
        else{
          pt2 = surf.pt( (i+1)*uinc, j*vinc );
        }
        if( j < vnum-1 ){
          pt3 = surf.pt( (i+1)*uinc, (j+1)*vinc );
        }
        else{
          pt3 = surf.pt( (i+1)*uinc, j*vinc );
	}
        new ISurface(pt1, pt2, pt3).clr(1,i*uinc,j*vinc);
      }
      else{
        pt1 = surf.pt( (i+1)*uinc, j*vinc );
        if( j < vnum-1 ){
          pt2 = surf.pt( i*uinc, (j+1)*vinc );
        }
        else{
          pt2 = surf.pt( i*uinc, j*vinc );
        }
        if( j > 0 ){
          pt3 = surf.pt( i*uinc, (j-1)*vinc );
        }
        else{
          pt3 = surf.pt( i*uinc, j*vinc );
	}
        new ISurface(pt1, pt2, pt3).clr(1-i*uinc);
      }
    }
  }
  surf.del();
}

Diamond Panelization

You can create diamond panels using the diagrid logic with the if condition of if( (i+j)%2 == 0 ).

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();

for( ISurface surf : surfs ){

  int unum = 10, vnum = 10;
  double uinc = 1.0/unum, vinc = 1.0/vnum;

  for(int i=0; i <= unum; i++){
    for(int j=0; j < vnum; j++){
      if( (i+j)%2 == 0 ){
        IVec pt1 = surf.pt( (i-1)*uinc, j*vinc );
        IVec pt2 = surf.pt( i*uinc, (j-1)*vinc );
        IVec pt3 = surf.pt( (i+1)*uinc, j*vinc );
        IVec pt4 = surf.pt( i*uinc, (j+1)*vinc );
        new ISurface(pt1, pt2, pt3, pt4).clr(.5,i*uinc,j*vinc);
      }
    }
  }
  surf.del();
}

To have rectangular corners and edges, you use if conditions to create filling triangular surfaces.

import processing.opengl.*;
import igeo.*;

size( 480, 360, IG.GL );

//IG.open("surface1.3dm");  //input geometry from 3dm file
IG.open("surface1.obj"); ///input geometry from OBJ file

ISurface[] surfs = IG.surfaces();

for( ISurface surf : surfs ){

  int unum = 10, vnum = 10;
  double uinc = 1.0/unum, vinc = 1.0/vnum;
  IVec pt1, pt2, pt3, pt4;
  for(int i=0; i <= unum; i++){
    for(int j=0; j < vnum; j++){
      if( (i+j)%2 == 0 ){
        if(i > 0){
          pt1 = surf.pt( (i-1)*uinc, j*vinc );
        }
        else{
          pt1 = surf.pt( i*uinc, j*vinc );
        }
        if(i < unum){
          pt3 = surf.pt( (i+1)*uinc, j*vinc );
        }
        else{
          pt3 = surf.pt( i*uinc, j*vinc );
        }
        if(j > 0){
          pt2 = surf.pt( i*uinc, (j-1)*vinc );
        }
        else{
          pt2 = surf.pt( i*uinc, j*vinc );
        }
        if(j< vnum-1){
          pt4 = surf.pt( i*uinc, (j+1)*vinc );
        }
        else{
          pt4 = surf.pt( i*uinc, j*vinc );
        }
        new ISurface(pt1, pt2, pt3, pt4).clr(i*uinc,j*vinc,.5);
      }
    }
  }
  surf.del();
}
